Komatsu S92

Neu, einzigartig produktiv und betriebssicher

Komatsu S92

Ein neues Allround-Aggregat mit maximaler Leistung und Zuverlässigkeit, selbst in anspruchsvollsten Einsätzen. Das sind ohne Zweifel die klarsten Vorteile unseres neuen Aggregats Komatsu S92 mit Zweiwalzenantrieb.

Features

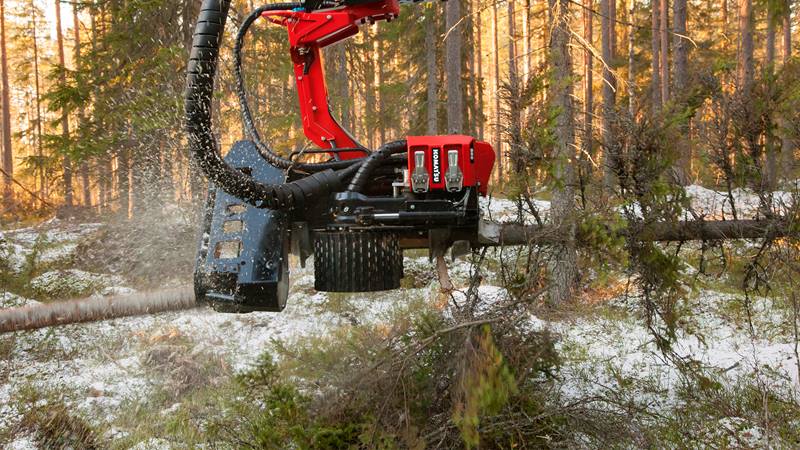

Dependable and productive even in tough conditions

The S92 is an allround head that is highly productive and dependable, even in the most difficult of forests. The two-wheel feeding system permits the stems to turn in the head, even those that are forked or are very crooked.

With the Model Year 2024 upgrade, the head has many improvements. Among them are that the intelligent Constant Cut saw motor controller is now standard on the S92. Constant Cut ensures that the head maintains a constant and high chain speed without the risk of overspeeding. There is a new 82 cm saw bar option as well, alongside the standard 75 cm saw bar. This optional saw bar is ideal for final logging.

Efficient feeding with Flex Friction control

Our knife control system, Flex Friction Control, has sensors that ensure the stem is always in the correct position in the feed path. This results in low friction and efficient feeding, without sacrificing the delimbing results.

The feed system also has high flow feed motors, which leads to high capacity while minimising energy losses.

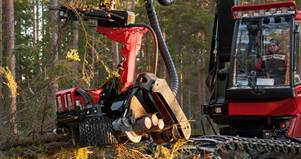

Multitree handling

The S92 can be equipped with an optional multitree equipment, which enables you to harvest several trees at a time. This makes the head more flexible and contributes to increased productivity.

The multi-tree handling function has a new, more durable design. The support plate has an improved design and the multi-tree handling hoses and rotator controller are more protected, extending their service life. The cylinders’ new, more protected placement reduces the risk of snow accumulation too. The new design results in a head that is a full 58 mm lower, making it more agile and simplifying work close to the machine.

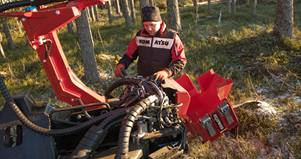

Service friendly

The head has a new position in which all lubrication points are accessible from one place, thereby simplifying service and daily maintenance.

Another improvement is that the colour marking tanks have been redesigned to provide easier access for filling. This modification also reduces the risk of snow accumulation.

Spezifikationen

S92

Übersicht

Komatsu S92 technical drawing
Breite, max.

1.382 mm

Höhe mit Rotator

1.873 mm

Höhe zum oberen Messer

1.474 mm

Walzenöffnung, max.

530 mm

Öffnung vordere Messer bis hintere Messer

573 mm

Öffnung vordere Messer

535 mm

Gewicht

Gewicht (Trockengewicht): ab 994 kg

Vorschubgeschwindigkeit

0-5 m/s

Vorschubkraft, brutto

26,2 kN

Vorschubräder, Typ

Stahlwalzen

Astmesser, max. Anzahl

4

Entastungsdurchm., Spitze an Spitze

373 mm

Sägeschwert

75/82 cm

Ablängmotor

19 cm3/Umdrehung

Theoret. max. Fälldurchmesser

615/715 mm

Erforderlicher max. Hydraulikfluss

280 l/min

Erforderlicher max. Hydraulikdruck

28 MPa

Allgemeine Information

Standard- und Sonderausstattung sind an den jeweiligen Zielmarkt angepasst und variieren von Land zu Land. Ein aktuelles Komponentenverzeichnis erhalten Sie von Ihrem Händler. Technische Daten und Abmessungen können je nach Ausstattungsoption variieren. Wir behalten uns das Recht vor, technische Daten oder Konstruktionen ohne vorherige Ankündigung zu ändern.
